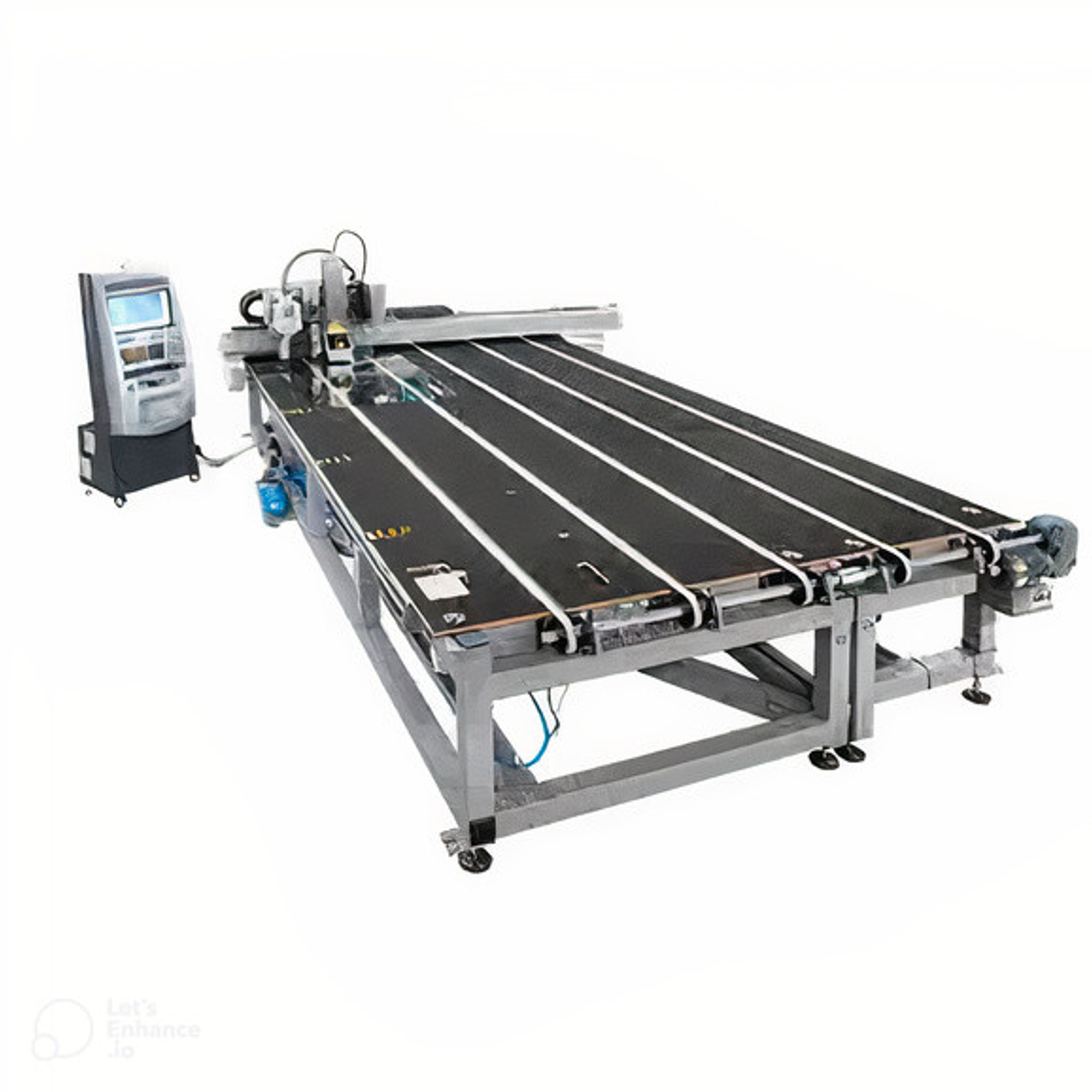

Loading, cutting, grinding, marking and breakout table intended for the wider range of applications. The 343 BKM is a fixed cutting table with betls and it is available with air cushion with quick closing (option), automatic selection of cutting pressures, Shape Scanner + Scan Cad, optimiser on the machine and BCMS Windows.
Machine brochure
BKM family presentation
| Technical features | 343BKM Regular | 343BKM Jumbo |
|---|---|---|
| Automation level | ★★★★☆ | ★★★★☆ |
| Max bridge speed | 150m/min | 150m/min |
| Maxcarriage speed | 150m/min | 150m/min |
| Maximum grinding speed with Easy deletion | 80m/min | 80m/min |
| Cutting accuracy on straight processes | ± 0,15mm | ± 0,15mm |
| Glass thickness | 2mm – 19mm | 2mm – 19mm |
| Worktable height | 930 ± 40mm | 930 ± 40mm |
| Dimensions | 5250 x 2905mm | 7600 x 2905mm |
| Maximum dimension of processable sheet | 3810 x 2750mm | 6100 x 3355mm |
● available option , ○ not available option
| Technical features | 343BKM Regular | 343BKM Jumbo |
|---|---|---|
| Assembly For Low-E Edge Deletion By Cup Wheel | ● | ● |
| Transformer For Power Supply Different From 380/400/415Volt | ● | ● |
| Automatic Frontal Squaring Lug | ○ | ○ |
| Automatic Lateral Squaring Lug | ○ | ○ |
| Additional Breakout Bar | ○ | ○ |
| Additional Longitudinal Breakout Bar | ○ | ○ |
| Additional Longitudinal Breakout Bar | ○ | ○ |
| Air Conditioning System For Electrical Cabinet | ● | ● |
| Air Cushion | ● | ● |
| Automatic Squaring Lugs | ○ | ○ |
| Automatic Tilting Arms | ○ | ○ |
| Backward Transport – From Table To Loader | ● | ● |
| Backward Transport – From Breakout To Cutting Table | ● | ● |
| Breakout Bars Assembly (2+1) | ○ | ○ |
| Double Cutting Oil Tank | ● | ● |
| Foot Pedal Switch For Slow Transport – Loading Table Joined With Belts Cutting Table | ● | ● |
| Loading LuGS – Optional For Non-Tilting Tables | ○ | ○ |
| Longer Connection Between Machine And Control Cabinet (12m Instead Of 7m) | ● | ● |
| Lugs For Glass (Max 19mm) Transport On Air Cushion | ○ | ○ |
| Manual Tilting Arm | ○ | ○ |
| Sandblast Plastic Cutting | ● | ● |
| Tilting Motion Assembly | ○ | ○ |
| Double Control (Foot Pedal) For 1 Breakout Bar | ○ | ○ |
| Connection To An Existing Loading Machine | ● | ● |
| Lugs For Glass (Max 19mm) Transport On Air Cushion | ○ | ○ |
| Optimization + Labels + Shape Catalogue + Cad (On-Board The Machine Pc) | ● | ● |
