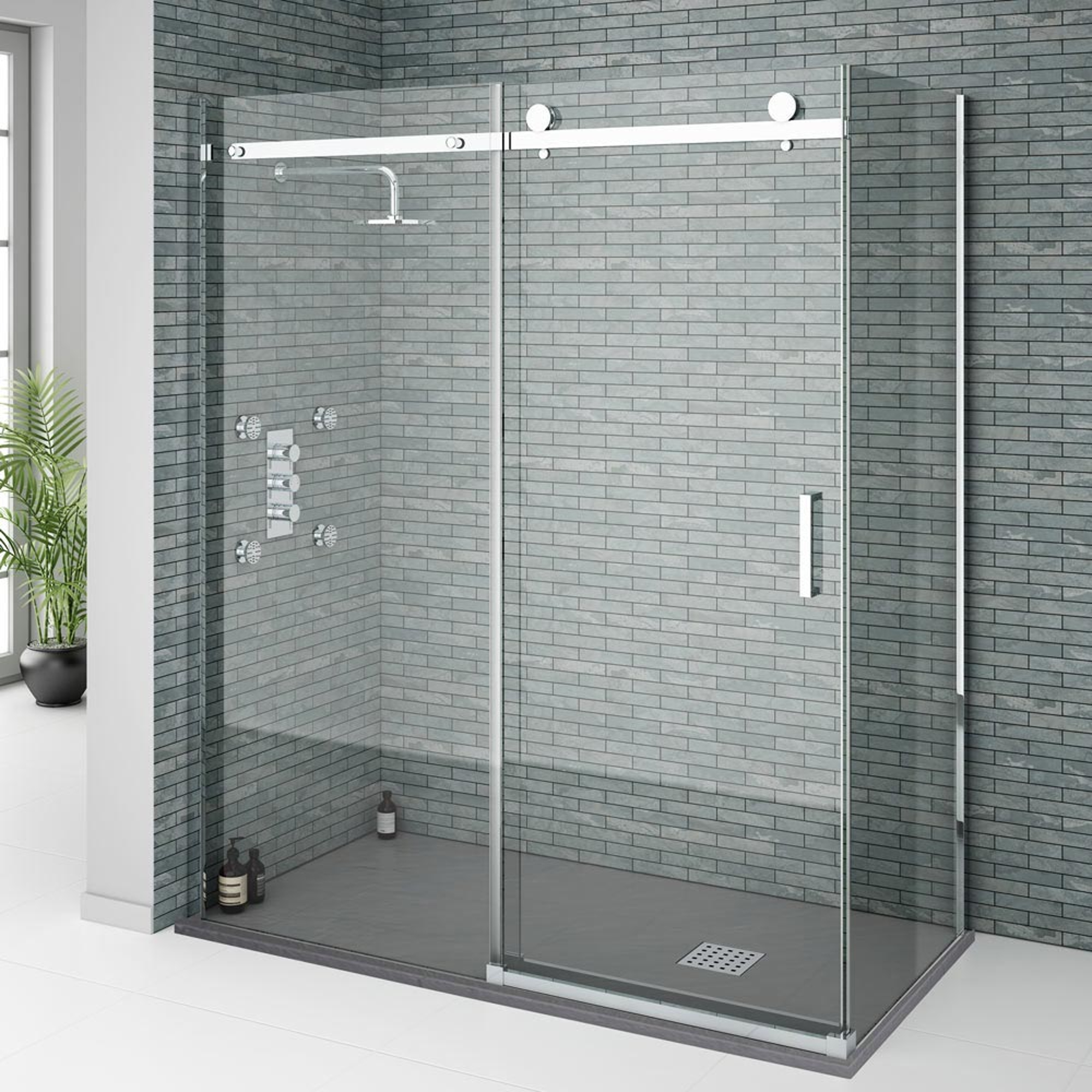

The PRD 860 inox shower is a system of high aesthetics and quality made of stainless steel components, with a design that offers silent operation during rolling. The system is lightweight and easy to use for both the user and the professional as it is supplied in a ready-to-use box (set).
prd 860 inox presentation
technical specifications
installation guide
| Technical features |  1 fixed & 1 sliding |
 2 fixed & 1 sliding |
 2 fixed & 2 sliding |
 2 fixed & 1 sliding |
 2 fixed & 2 sliding |
|---|---|---|---|---|---|
| Shower layout | Straight layout | Angular layout | |||
| Min opening | – | ||||
| Max opening** | 2000mm | 2000mm | 2000mm | 2000mm | 2000mm |
| Max height** | 2000mm | 2000mm | 2000mm | 2000mm | 2000mm |
| Glass pane thickness | 8mm – 10mm | 8mm – 10mm | 8mm – 10mm | 8mm – 10mm | 8mm – 10mm |
| Type of glazing | Tempered / Laminate | Tempered / Laminate | Tempered / Laminate | Tempered / Laminate | Tempered / Laminate |
| Fixing | Wall | Wall | Wall | Wall | Wall |
| Finish | Polished stainless steel | Polished stainless steel | Polished stainless steel | Polished stainless steel | Polished stainless steel |
| Shower kit | ✔ | ✔ | ✔ | ✔ | ✔ |
| Type “U” profile | ✔ | ✔ | ✔ | ✔ | ✔ |
| Stainless steel rolling guide | ✔ | ✔ | ✔ | ✔ | ✔ |
| Polycarbonate sealants | ✔ | ✔ | ✔ | ✔ | ✔ |
| Fixed bracket | – | – | – | ✔ | – |
| Corner connectors | – | – | – | – | ✔ |
**For special cases please contact the iGlass Engineering Department
| Prd 860 inox consists of : |
|---|
| Technical features | 1 fixed & 1 sliding |
2 fixed & 1 sliding |
2 fixed & 2 sliding |
2 fixed & 1 sliding |
2 fixed & 2 sliding |
|||||
|---|---|---|---|---|---|---|---|---|---|---|
| Glass | 8mm | 10mm | 8mm | 10mm | 8mm | 10mm | 8mm | 10mm | 8mm | 10mm |
| Shower kit |  107-860 | Sliding shower kit |
107-860 | Sliding shower kit |
107-860 | Sliding shower kit |
107-860 | Sliding shower kit |
107-860 | Sliding shower kit |
|||||
| Type “U” profile |  107-1426 | Type “U” profile |
107-1427 | Type “U” profile |
107-1426 | Type “U” profile |
107-1427 | Type “U” profile |
107-1426 | Type “U” profile |
107-1427 | Type “U” profile |
107-1426 | Type “U” profile |
107-1427 | Type “U” profile |
107-1426 | Type “U” profile |
107-1427 | Type “U” profile |

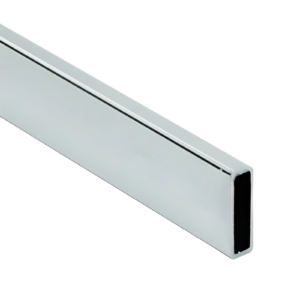

| Shower bar for >2m |  71-48 | Shower bar |
71-48 | Shower bar |
71-48 | Shower bar |
71-48 | Shower bar |
71-48 | Shower bar |
71-48 | Shower bar |
71-48 | Shower bar |
71-48 | Shower bar |
71-48 | Shower bar |
71-48 | Shower bar |

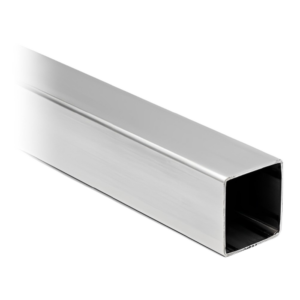

| Stainless steel tube |  215-546 | Rectangular stainless steel bracket |
215-546 | Rectangular stainless steel bracket |
215-546 | Rectangular stainless steel bracket |
215-546 | Rectangular stainless steel bracket |
215-546 | Rectangular stainless steel bracket |
215-546 | Rectangular stainless steel bracket |
215-546 | Rectangular stainless steel bracket |
215-546 | Rectangular stainless steel bracket |
215-546 | Rectangular stainless steel bracket |
215-546 | Rectangular stainless steel bracket |
| Vertical sealant |  70-150 | Sealant profile with flexible gasket 90° |
70-151 | Sealant profile with flexible gasket 90° |
70-150 | Sealant profile with flexible gasket 90° |
70-151 | Sealant profile with flexible gasket 90° |
70-150 | Sealant profile with flexible gasket 90° |
70-151 | Sealant profile with flexible gasket 90° |
70-150 | Sealant profile with flexible gasket 90° |
70-151 | Sealant profile with flexible gasket 90° |
70-150 | Sealant profile with flexible gasket 90° |
70-151 | Sealant profile with flexible gasket 90° |
| Sealant with magnet | – | – |  70-146 | Sealant profile with magnet 90° |
70-147 | Sealant profile with magnet 90° |
– | 70-146 | Sealant profile with magnet 90° |
70-147 | Sealant profile with magnet 90° |
|||
| Sealant bubble type |  70-154 | Sealant bubble type profile |
70-181 | Sealant bubble type profile |
– | – | 70-154 | Sealant bubble type profile |
70-181 | Sealant bubble type profile |
– | |||
| Connector 90° | – | – | – |  107-1100 | Shower pipe bracket |
107-1100 | Shower pipe bracket |
– | ||||
| Corner frame connector | – | – | – | – |  107-1101 | Corner frame connector |
107-1101 | Corner frame connector |
||||
| Corner bar connector | – | – | – | – |  107-923 | Rectangular 90° shower rail connector |
107-923 | Rectangular 90° shower rail connector |
||||
| Additional system accessories : |
|---|
| Type “U” profile | |||
|---|---|---|---|
107-1258 | Aluminium profile type “U” |
|||
| Fittings | |||
|---|---|---|---|

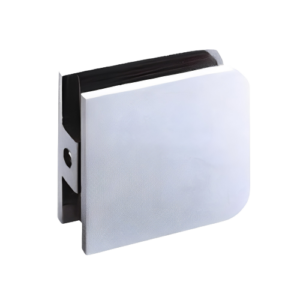

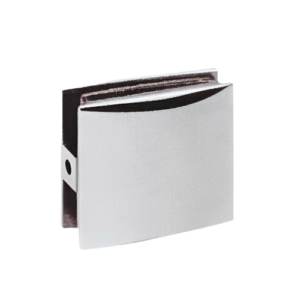

 45-39 | Glass to wall patch fitting |
 45-5 | Glass to wall patch fitting |
||
| Support | |||
|---|---|---|---|

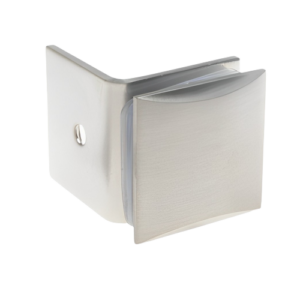

 41-642 | Glass to wall corner fixed connector 90° |

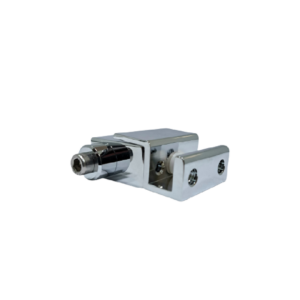

 107-702 | Fixed bracket with guide rail |
||
| Floor guide | |||
|---|---|---|---|

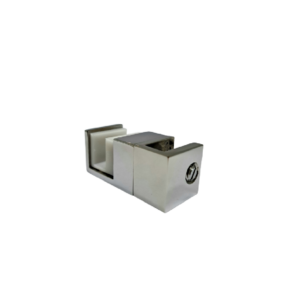

 107-1178 | Sliding shower floor guide |
|||
