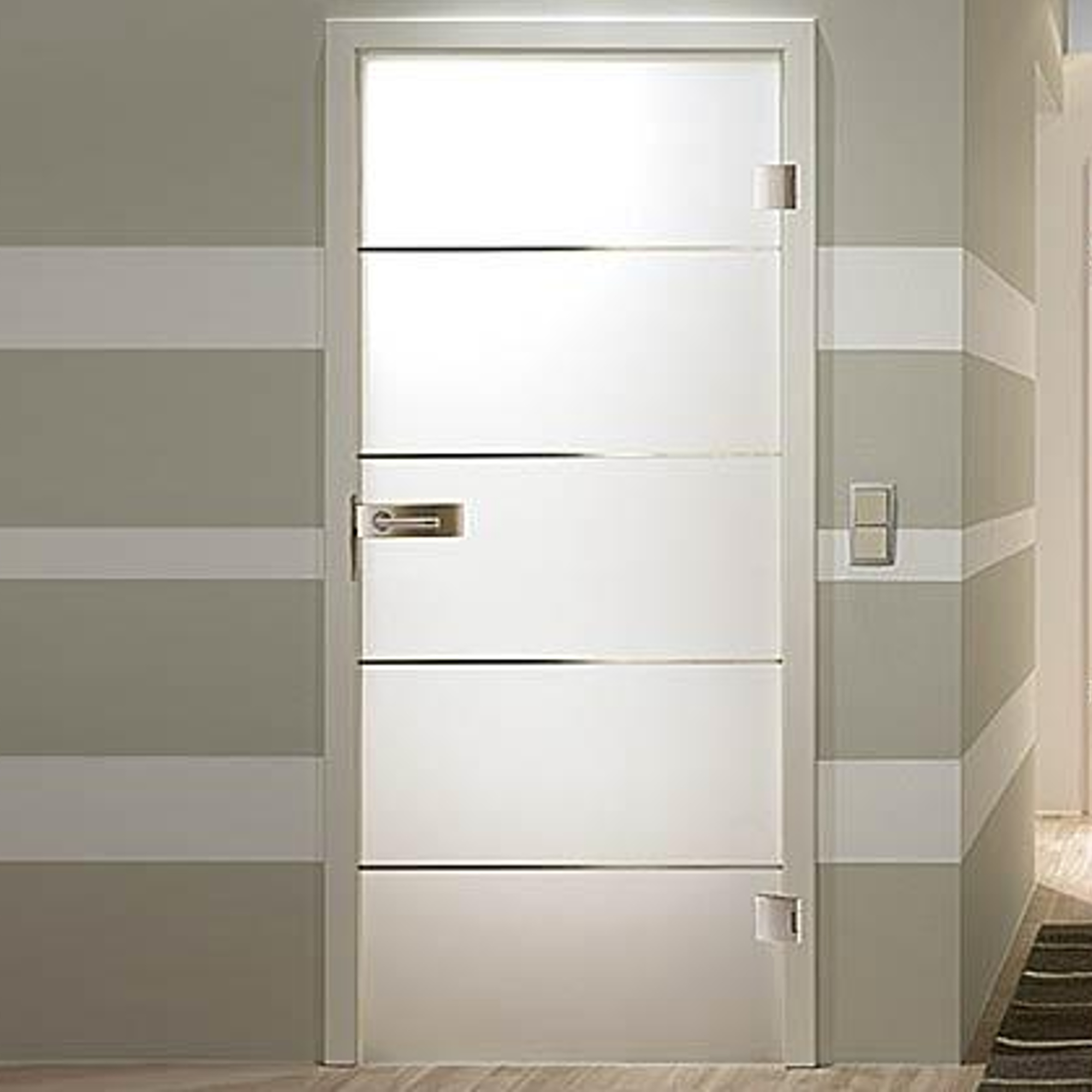

Primera

Aluminium frame system of glass doors. Thin aluminium profiles easy to install, minimalist aesthetics.

primera presentation

technical specifications

installation guide

Χαρακτηριστικά

Extras

Χαρακτηριστικά

Technical features	Primera
Material	Aluminium
Finish	Anodized silver Polished SSSS
RAL paint	Available on request
Glass pane thickness	8 – 10mm
Max door width	1000mm
Max door weight	75Kg
Door frame	75 – 185mm

Extras

Primera consists of :

Technical features	Primera

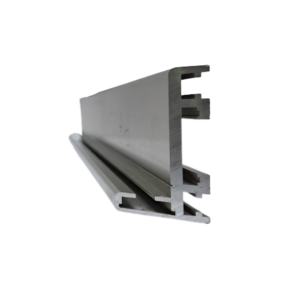

Aluminium case	107-982 \| Aluminium case

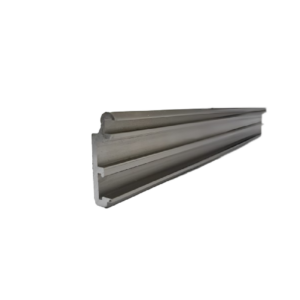

Aluminium frame	107-978 \| Aluminium frame

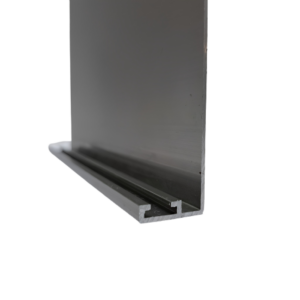

Aluminium case frame	107-1085 \| Aluminium case frame

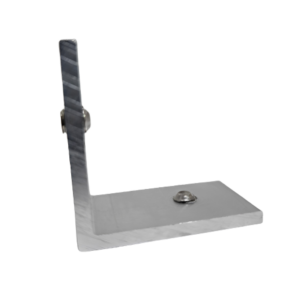

Angle of frame connection	107-1289 \| Angle of frame connection

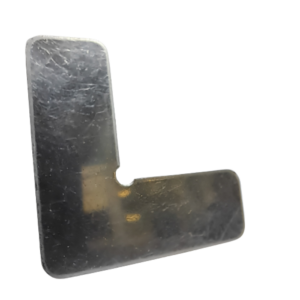

Planarity angle	107-988 \| Planarity angle for aluminium case
Planarity angle	107-987 \| Planarity angle for aluminium frame

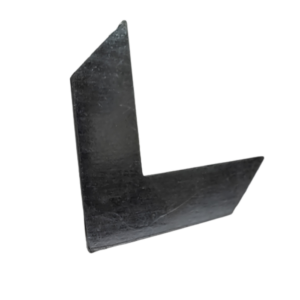

Planarity angle	107-1148 \| Planarity angle for aluminium case frame

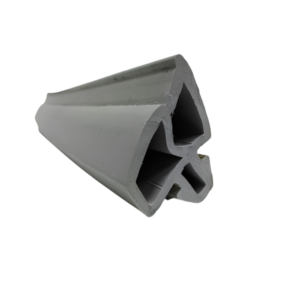

Rubber	107-989 \| Aluminium case rubber

Additional system accessories :

Door lock

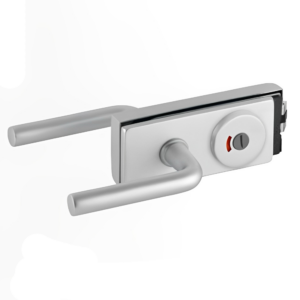

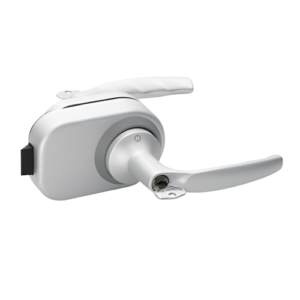

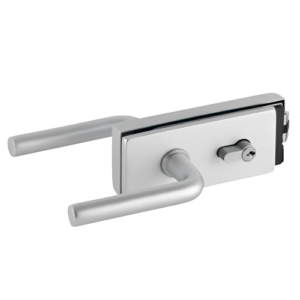

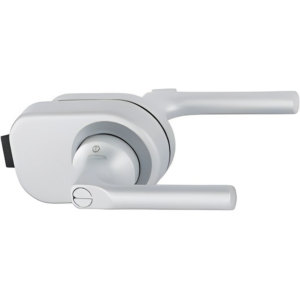

20-203 \| Door lock, knob-key	20-205 \| Door lock with indication, knob-slot	20-188 \| Door lock, key-key	20-196 \| Door lock with indication, knob-slot

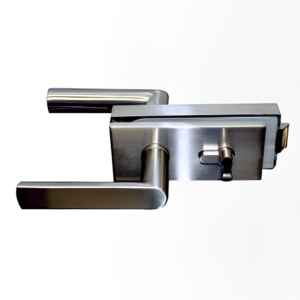

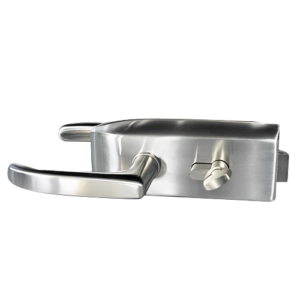

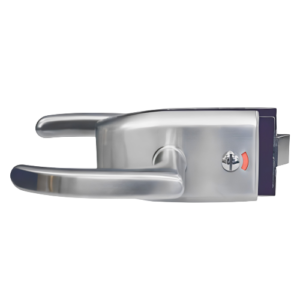

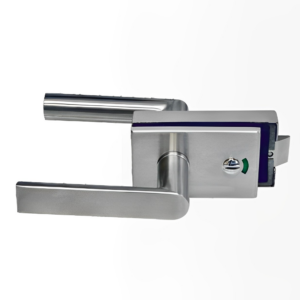

20-101 \| Door lock, key-key	20-150 \| Door lock rectagular section, knob-key	20-121 \| Door lock with indication, knob-coin slot	20-180 \| Door lock square section with indication, knob-slot

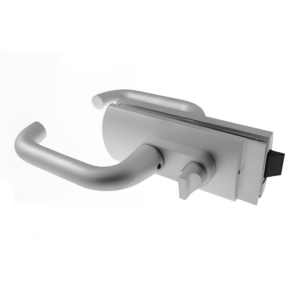

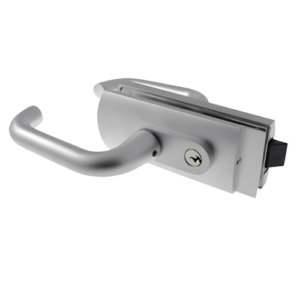

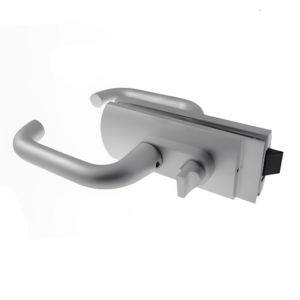

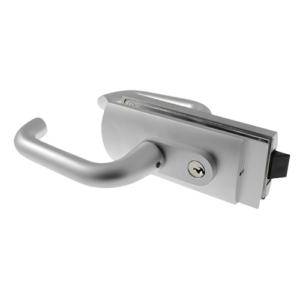

20-80 \| Door lock Flexa 6410, key-key	20-82 \| Door lock Flexa 6411, knob-key	20-87 \| Door lock Flexa 6411, key-knob	20-83 \| Door lock Flexa 6412, knob-slot

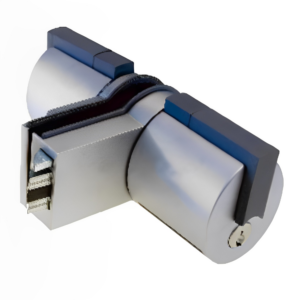

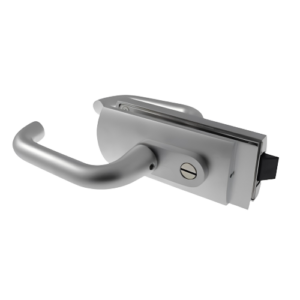

20-86 \| Door lock Flexa 6412A, slot-knob	20-158 \| Meroni F13 Forma door lock, key-button

Glass lock strike

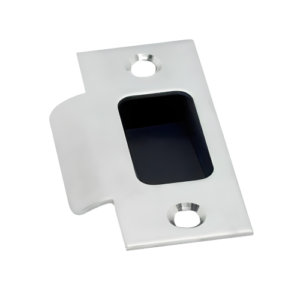

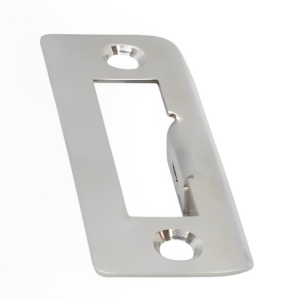

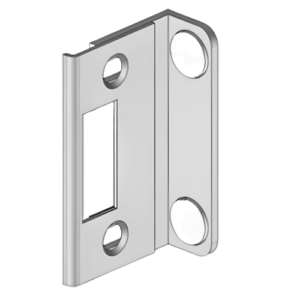

21-78 \| Wall strike for door lock	21-57 \| Wall door strike	23-39 \| Wall strike for Flexa door lock

Hinges

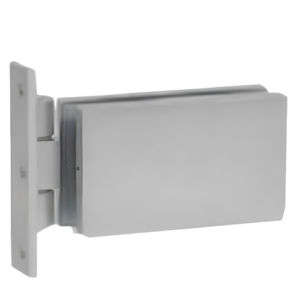

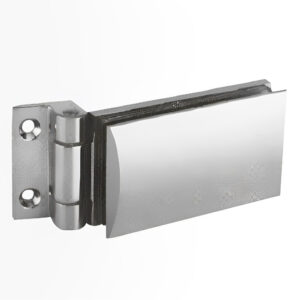

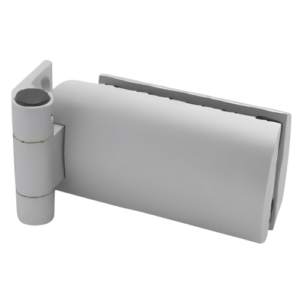

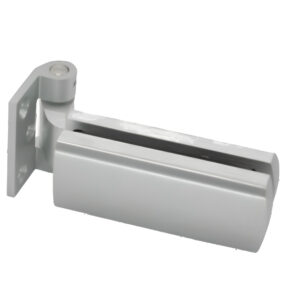

10-373 \| Flag hinge G-W	10-144 \| Flag hinge G-W 8810 Flexa	10-278 \| Flag hinge G-W	10-226 \| Flag hinge G-W

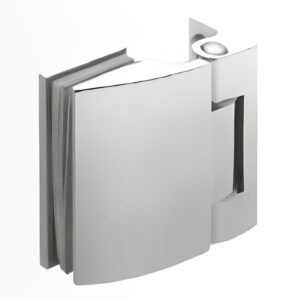

10-227 \| Flag hinge G-W
